Introduction

The Raspberry Pi Zero boards are compact, cost-effective, and versatile single-board computers that provide accessible computing power for a wide range of projects. Introduced by the Raspberry Pi Foundation of Cambridge University to improve youth computing skills, these boards are ideal for educational purposes, hobbyist projects, and prototyping due to their small size and affordability.

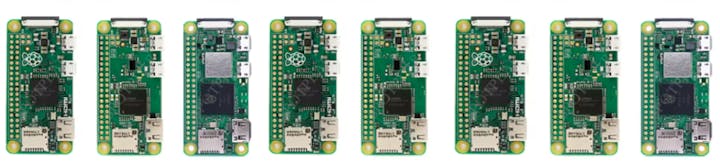

The Raspberry Pi Zero series includes the original Raspberry Pi Zero, the Raspberry Pi Zero W, and the Raspberry Pi Zero 2 W. Each iteration offers varying levels of performance and connectivity options:

1. Raspberry Pi Zero: The original model, featuring a 1GHz single-core ARM11 processor, 512MB of RAM, and a mini HDMI port. It includes a micro USB port for power and data, a 40-pin GPIO header for hardware interfacing, and a CSI camera connector.

2. Raspberry Pi Zero W: Building on the original, the Zero W adds wireless capabilities, including 802.11n Wi-Fi and Bluetooth 4.1, making it suitable for IoT projects and wireless applications.

3. Raspberry Pi Zero 2 W: The latest in the series, this model significantly boosts performance with a quad-core 64-bit ARM Cortex-A53 processor, while maintaining the same form factor. It also includes Wi-Fi and Bluetooth connectivity.

These boards are compatible with a variety of operating systems, including Raspberry Pi OS, a Debian-based Linux distribution optimized for the Raspberry Pi hardware. This makes them excellent tools for learning programming, electronics, and computer science concepts, as well as implementing smart device behavior, complex robotics, and home automation systems, and more. The Raspberry Pi is supported by a vast community, providing extensive resources, tutorials, and forums for learners and developers.

Setup Guides

The setup for all boards in this family is more or less identical. There are two approaches you can take: the traditional hardware setup (basic, recommended) or the headless setup over ssh (advanced, ymmv)

⁠

Raspberry Pi Zero Setup Guide (Basic)⁠

⁠

Raspberry Pi Zero Setup Guide (Advanced)⁠

⁠

Working Principles

What makes a Raspberry Pi Zero board tick?

1. Discrete Hardware Components:

Processor (CPU): The Raspberry Pi Zero features a more powerful processor compared to other microcontrollers. It can execute complex instructions and run a full operating system, making it suitable for multitasking and running sophisticated applications.

Working Memory (RAM): Unlike microcontrollers, which typically have limited onboard memory, the Raspberry Pi Zero includes more RAM, allowing it to handle larger programs and data sets efficiently.

Data Storage: The Raspberry Pi Zero uses a microSD card for storage, which can hold the operating system, applications, and files. Microcontrollers often just have built-in flash memory with limited capacity for storing firmware and data.

Input/Output Interfaces: Raspberry Pi Zero boards offer a variety of interfaces, including USB ports, HDMI, GPIO pins, and wireless connectivity (Wi-Fi and Bluetooth on some models). Microcontrollers usually have fewer interfaces, focusing on GPIO pins for direct hardware control.

2. Operating System:

The Raspberry Pi Zero runs a full operating system, typically Raspberry Pi OS, a variant of Linux. This OS manages hardware resources and provides a platform for running complex applications. Microcontrollers, on the other hand, do not run full operating systems; they execute firmware directly, which is often written in languages like C or C++.

3. Distinct Boot Process:

When powered on, the Raspberry Pi Zero's boot-loader initializes the hardware and loads the operating system from the microSD card into memory. Microcontrollers typically start executing their firmware immediately upon power-up, without the need for a boot-loader or OS.

4. Software Execution:

The Raspberry Pi Zero can run multiple applications simultaneously, thanks to its operating system and multitasking capabilities. It processes instructions in a sequence determined by your software, interacting with hardware through system calls. Microcontrollers execute a single program loop, designed for real-time control and simple tasks.

5. Networking and Communication:

The Raspberry Pi Zero can connect to networks via Wi-Fi or through USB adapters, enabling internet connectivity and remote access. Microcontrollers may have limited networking capabilities, often requiring additional hardware for connectivity.

6. Sophisticated Interfacing with External Devices:

The GPIO (General Purpose Input/Output) pins on the Raspberry Pi Zero allow it to interface with sensors, actuators, and other electronics, similar to microcontrollers. However, the Raspberry Pi Zero's additional processing power and connectivity options make it suitable for more complex projects, such as running web servers or processing multimedia.

Pi Zero Tech Specs: Broadcom Chips & RP3A0 Architecture

From the Raspberry Pi documentation

on GitHub⁠

The Raspberry Pi RP3A0 is our first System-in-Package (SiP) consisting of a Broadcom BCM2710A1 — which is the silicon die packaged inside the Broadcom

BCM2837⁠

chip which is used on the

Raspberry Pi 3⁠

— along with 512MB of DRAM. It is used by the

Raspberry Pi Zero 2 W⁠

The RP3A0 is a Quad-core 64-bit Arm Cortex A53 CPU clocked at 1 GHz, although with a heat sink or other cooling solution in place, the chip can be potentially overclocked to 1.2 GHz.

Check out the following BCM2836 document for details on the ARM peripherals specs, which also apply to the BCM2837 and RP3A0.

⁠

BCM2836 ARM-local peripherals⁠

⁠

Cortex-A53 MPCore Processor Technical Reference Manual⁠

“ - Raspberry Pi Foundation

The original

Raspberry Pi Zero⁠

uses Package-on-Package (PoP) DRAM, where the DRAM is soldered directly on top of the

BCM2835⁠

chip.
